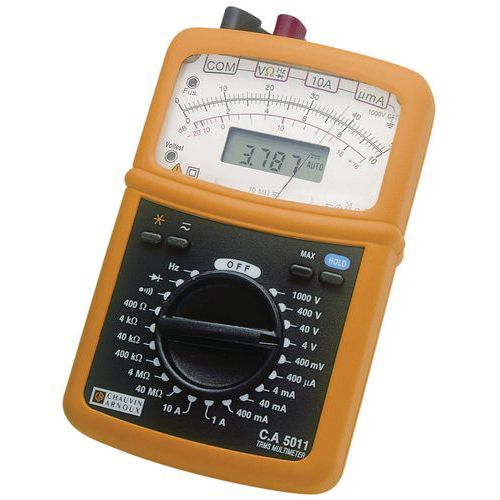

Description
- Double screen used for faster reading speed.
- Integrated small digital screen for accuracy.
- Automatic recognition of alternative / continuous current.
- Saving of measurements.
- Shock-proof box with hinged stand to put it on.
- TRMS converter.
Don't forget to order your 9 V battery.
Specifications
Product Information
Brand | Chauvin Arnoux |
---|---|
Packaging | unit |
Technical Specification
Display | 4000-point |
---|---|
Max. AC current (A) | 10 A |
Resistance Max. (MOhm) | 40 MOhm |
Min. frequency (kHz) | 4 kHz |
Max. frequency (kHz) | 400 kHz |
EN Norm | EN 61010, Cat. IV 600 V, EN 61010, Cat. III 1000 V |
WEEE | no |
AC/DC Max. current (A) | 10 A |
Thickness (mm) | 56 mm |
Length (mm) | 160 mm |
Customer warranty | 3 years |
AC/DC Max. voltage (V) | 1000 V |
Weight (g) | 500 g |
Width (mm) | 105 mm |
