Electric Pallet Stacker Truck - Max Lift Height 3000mm - 1200kg Capacity
X
Click and drag to spin
£2,750.00 excl VAT
£2,279.00
excl VAT
£2,734.80 incl. VAT
unit Item code: A907372
- Free delivery on all orders
- Free returns within 30 days
- Pay by card, account or Paypal
- We'll beat any price by 5%
Description

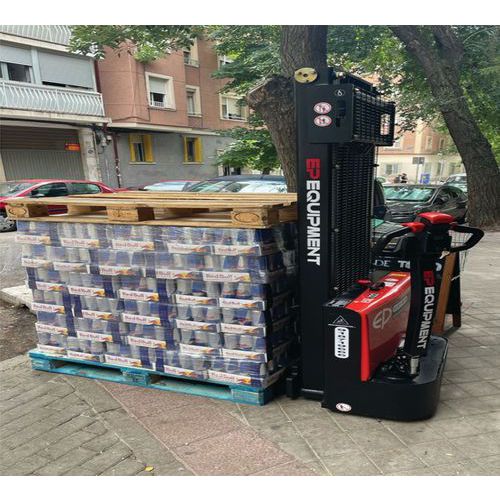

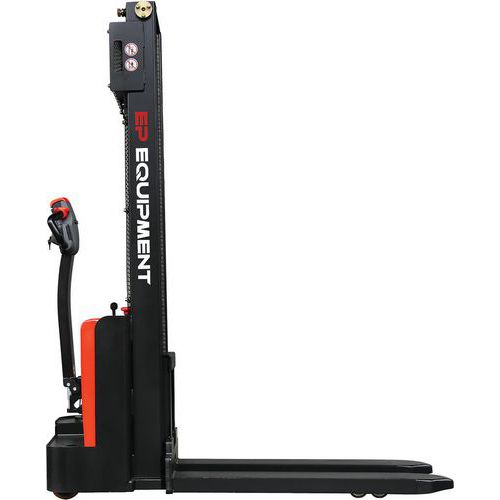

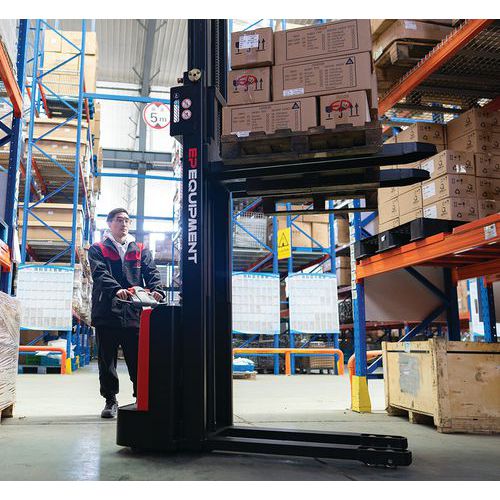

This electric pallet stacker enables efficient and effective vertical stacking with an AGM battery.
- The strong chassis and rigid mast of the electric pallet stacker offers increased stability.
- Features a maximum lift height of 3000mm.
- Ideal for operating in narrow aisles and confined spaces.
- The offset tiller is extra long and ergonomic to use.
- The crawl speed button allows the pallet stacker to be set to move at a very slow pace - ideal for moving tricky or delicate items.
- The hydraulic pump is quiet, durable and efficient.
- Specifically designed for vehicles with automatic start-stop systems.
- Supplied AGM batteries offer a long life and excellent performance.
- Electric pallet stacker trucks are supplied with a charger.
- Please Note: This is a tall item of 2115mm, and a forklift truck must offload the pallet stacker at the delivery address. If you do not have an onsite forklift truck, please call our sales team to quote for an updated carriage cost.
Please Note: This electric pallet stacker is not suitable for closed-bottom pallets.
-
Customer warranty : 1 year -
Load capacity (kg) : 1200 kg
Specifications
Product Information
| Brand | EP |
|---|---|
| Packaging | unit |
Technical Specification
| Load capacity (kg) | 1200 kg |
|---|---|
| Max. lift height (mm) | 3000 mm |
| Weight without batteries (kg) | 542.50 kg |
| O/A width (mm) | 792 mm |
| O/A length (mm) | 1713 mm |
| Fork length (mm) | 1150 mm |
| No load lifting speed (m/s) | 0.14 m/s |
| No load descent speed (m/s) | 0.10 m/s |
| Battery voltage (V) | 24 V |
| Moving speed with load (km/h) | 4.2 km/h |
| Moving speed without load (km/h) | 4.5 km/h |
| Customer warranty | 1 year |
| Turning radius (mm) | 1390 mm |
| Loaded descent speed (m/s) | 0.10 m/s |
| Fork width (mm) | 170 mm |
| Fork height (mm) | 60 mm |
| Loaded lifting speed (m/s) | 0.10 m/s |
| O/A height (mm) | 2115 mm |
| Fork wheel material | Polyurethane |
| Ergonomic | yes |
Documentation
Please select a product to view available documents
Our reviews are genuine and reliable. To find out more about our authentication and control procedures, click here.
Quick info guide
i
Sturdy
The side impact beam, plates, and boxes make the chassis stronger greatly reducing stress and deformation caused by a heavy load.
i
Rigid Mast
The rigidity of the mast is greatly improved by its beam structure to provide smooth lifting and stacking for daily operation.
i
Easy Operation
The extra-long and offset tiller with the crawl speed button provides better visibility and nimble manoeuvrability when operating in tight spaces.
i
AGM battery
24V/85Ah long lasting gel battery, perfect for busy warehouse environments.
