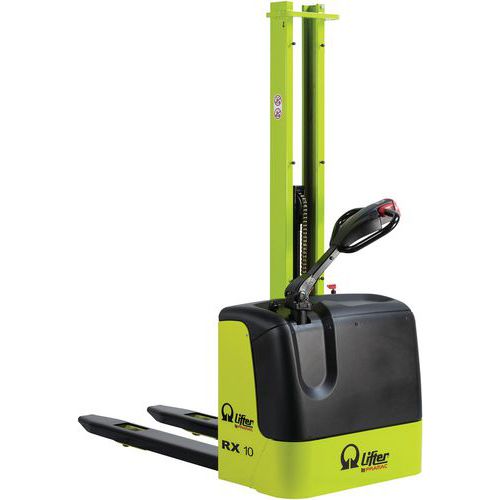

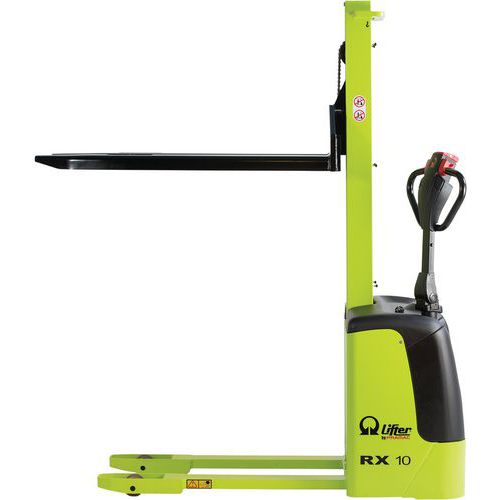

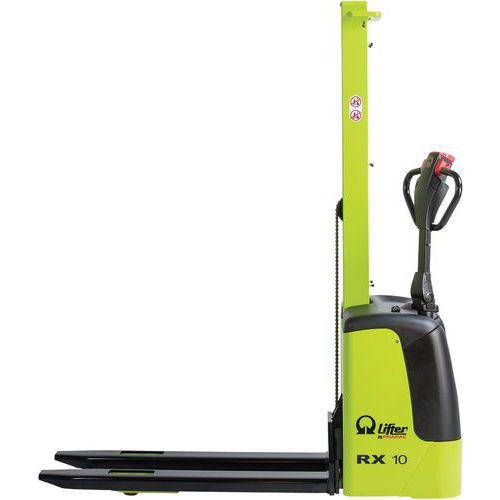

Electric Stacker - 1000kg Capacity - Pramac RX 10/16+

X

Electric Stacker - 1000kg Capacity - Pramac RX 10/16+

This compact stacker is suitable for up to 1000kg light duty lifting

The powerful batteries are semi-traction for multiple charging cycles and offer up to 4 hours of use.

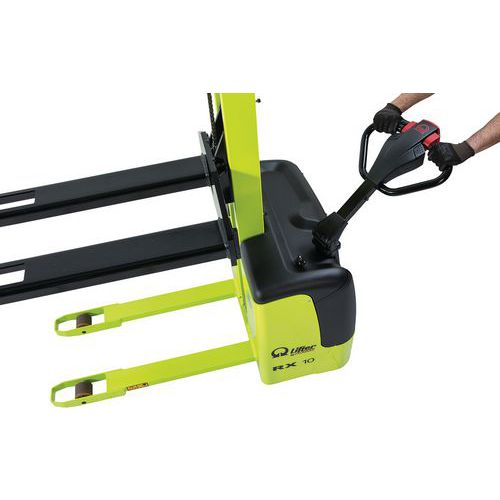

A built-in ergonomic tiller system includes safety push-button, horn, turtle button, fingertip throttle and fork controls.
60mm thick forks give you easier access to pallets.
The strong ABS cover has handy storage compartments on top.
The maintenance covers are easy to remove, allowing you easy access to the components without needing to raise the stacker.
Integrated on board battery charger.

See more information...

Made in the EU
Made in the EU
Load capacity (kg) : 1000 kg

£4,309.00

excl. VAT

£5,170.80 incl. VAT

unit

Item code:   A815231

Add to Basket

Free delivery on all orders
Free returns within 30 days
Pay by card, account or Paypal
We'll beat any price by 5%

Description

This compact stacker is suitable for up to 1000kg light duty lifting

The powerful batteries are semi-traction for multiple charging cycles and offer up to 4 hours of use.
A built-in ergonomic tiller system includes safety push-button, horn, turtle button, fingertip throttle and fork controls.
60mm thick forks give you easier access to pallets.
The strong ABS cover has handy storage compartments on top.
The maintenance covers are easy to remove, allowing you easy access to the components without needing to raise the stacker.
Integrated on board battery charger.

Made in the EU
Made in the EU
Load capacity (kg) : 1000 kg

Environmental and/or social benefits

This product is ergonomic, which means that using it will ensure good working conditions with regard to the user's health and safety (e.g. it helps to minimise the risk of developing musculoskeletal problems).

Specifications

Product Information

Brand	Pramac
Packaging	unit

Technical Specification

Load capacity (kg)	1000 kg
Max. lift height (mm)	1510 mm
Weight without batteries (kg)	333 kg
O/A width (mm)	794 mm
O/A length (mm)	1675 mm
Fork length (mm)	1153 mm
No load lifting speed (m/s)	0.21 m/s
No load descent speed (m/s)	0.18 m/s
Battery voltage (V)	24 V
Moving speed with load (km/h)	3.7 km/h
Moving speed without load (km/h)	4.3 km/h
O/A height (mm)	1970 mm
Steering wheel width (mm)	50 mm
Loaded lifting speed (m/s)	0.12 m/s
Fork width (mm)	150 mm
Forks Int. Gap (mm)	560 mm
Steeringwheel Ø (mm)	186 mm
Turning radius (mm)	1344 mm
Fork wheel Ø (mm)	82 mm
Ergonomic	yes
Product origin	Made in the EU
Loaded descent speed (m/s)	0.18 m/s
Fork wheel material	Rubber
Steering wheel material	Polyurethane
