Steel handling ball - Screw fixing

X
Steel handling ball - Screw fixing

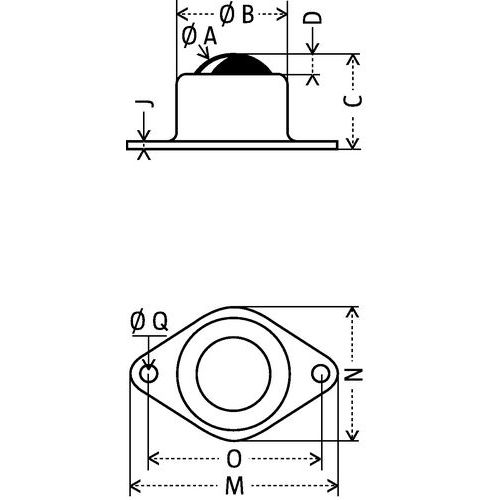

- Ø A: ball Ø- Ø B: Ø overall- C: overall height- D: exceeding the ball- J: platinum thickness.- M : base length- N : base width- Ø K: distance between fixing holes- Ø Q: fixing hole Ø
£11.85
 excl. VAT
£14.22 incl. VAT
unit
Item code:   A001542
  • Free delivery on all orders
  • Free returns within 30 days
  • Pay by card, account or Paypal
  • We'll beat any price by 5%

Description

For handling your loads with rigid base

  • Screw, rivet or bolt fixture.
  • Handling ball with oblong plate.

Specifications

Product Information

Brand Guitel
Packaging unit

Technical Specification

Max. load (kg) 55 kg
Type of fixing Screws or nails
Model With oblong plate
Ball Ø (mm) 25 mm
Ball material Steel
Casing material Steel
Collar hight (mm) 30 mm
O/A height (mm) 45 mm
Base width (mm) 51 mm
O/A Ø (mm) 45 mm
Pitch hole fixing (mm) 60 mm
Weight (g) 150 g
Fixing hole Ø (mm) 5 mm
Base length (mm) 68 mm
Top plate thickness (mm) 1 mm
