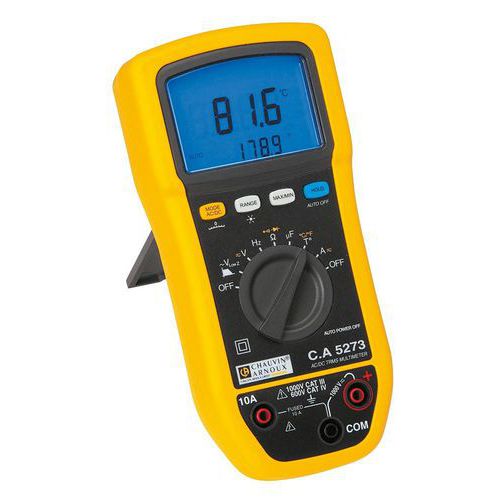

TRMS digital multimeter - CA 5273 - Chauvin Arnoux

CA 5273 TRMS digital multimeter, category IV for safety, versatility for field use

CA 5273 TRMS digital multimeter with double 6000-point backlit screen. Dual-mode remanent bar graph. VLowZ low-impedance voltage measurement with low-pass filter (electronic power supply). Rapid response (five measurements per second) and high crest factor. Resistance, continuity, frequency, temperature, capacitance etc. Min Max Peak functions and relative and differential measurements.

See more information...

Made in the EU
Made in the EU
Customer warranty : 3 years

X

TRMS digital multimeter - CA 5273 - Chauvin Arnoux

£389.00

excl. VAT

£466.80 incl. VAT

unit

Item code:   AB12554

Add to Basket

Description

CA 5273 TRMS digital multimeter, category IV for safety, versatility for field use

CA 5273 TRMS digital multimeter with double 6000-point backlit screen. Dual-mode remanent bar graph. VLowZ low-impedance voltage measurement with low-pass filter (electronic power supply). Rapid response (five measurements per second) and high crest factor. Resistance, continuity, frequency, temperature, capacitance etc. Min Max Peak functions and relative and differential measurements.

CA 5273 multimeter supplied with: operating instructions on CD in 5 languages, quick start guide in 5 languages, 9-V 6LF22 alkaline battery, 1.5-m straight/angled red cable, 1.5-m straight/angled black cable, 1-kV CAT-IV 2 red test probe, 1-kV CAT-IV 2 black test probe, temperature probe.

Made in the EU
Made in the EU
Customer warranty : 3 years

Environmental and/or social benefits

This packaging is 100% recyclable, which means that at the end of its life, all of its components can be recycled separately via specific recycling facilities.

Specifications

Product Information

Product Name	TRMS digital multimeter, Max. AC current: 10 A, Resistance Max.: 60 MOhm, AC Min. voltage: 60 mV
Brand	Chauvin Arnoux
Packaging	unit

Technical Specification

Display	Double 6000-count backlit screen + 61-segment bar graph
AC Min. voltage (mV)	60 mV
AC Max. voltage (V)	1000 V
Min. AC current (mA)	20 mA
DC Min. voltage (mV)	0.1 mV
DC Max. voltage (V)	1000 V
Max. AC current (A)	10 A
Min. DC current (mA)	20 mA
Max. DC current (A)	10 A
Min. resistance (Ohm)	0.5 Ohm
Resistance Max. (MOhm)	60 MOhm
Min. frequency (Hz)	10 Hz
Max. frequency (kHz)	60 kHz
EN Norm	EN 61010, Cat. III 1000 V, EN 61326-1, EN 61010, Cat. IV 600 V
AC/DC Min. current (mA)	20 mA
AC/DC Max. current (A)	10 A
AC/DC Min. voltage (mV)	0.1 mV
Length (mm)	190 mm
Thickness (mm)	45 mm
Customer warranty	3 years
Fully recyclable packaging	Yes - 100%
Product origin	Made in the EU
Weight (g)	400 g
Width (mm)	90 mm
AC/DC Max. voltage (V)	1000 V
Manufacturer Ref.	CA5273
