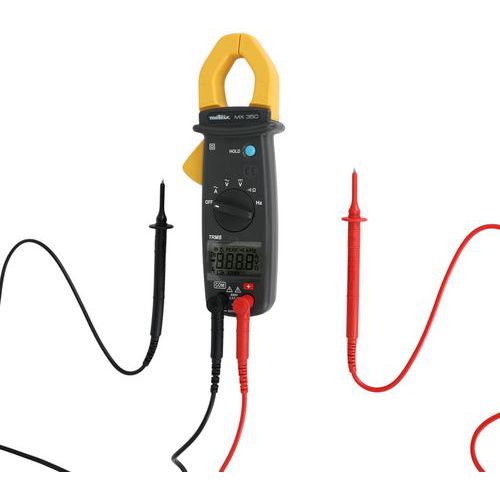

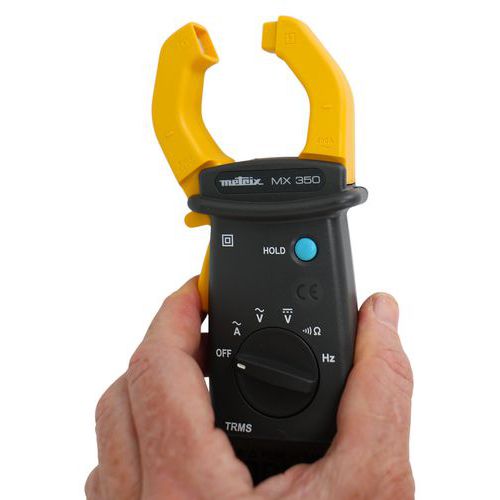

Compact and ergonomic TRMS multimeter current clamp. Current measurement up to 400 A AC (MX 350) and 400 A AC/A DC (MX 355). AC and DC voltage measurement up to 600 V. Resistance and continuity measurement. Frequency measurement (MX 350). Automatic zero DC (MX 355). TRMS measurements. Peak function (1 ms) (MX 355).
METRIX clamp multimeters: all the features of a clamp-on ammeter and a complete multimeter!
Compact and ergonomic TRMS multimeter current clamp. Current measurement up to 400 A AC (MX 350) and 400 A AC/A DC (MX 355). AC and DC voltage measurement up to 600 V. Resistance and continuity measurement. Frequency measurement (MX 350). Automatic zero DC (MX 355). TRMS measurements. Peak function (1 ms) (MX 355).
METRIX clamp multimeters: all the features of a clamp-on ammeter and a complete multimeter!
Compact and ergonomic TRMS multimeter current clamp. Current measurement up to 400 A AC (MX 350) and 400 A AC/A DC (MX 355). AC and DC voltage measurement up to 600 V. Resistance and continuity measurement. Frequency measurement (MX 350). Automatic zero DC (MX 355). TRMS measurements. Peak function (1 ms) (MX 355).

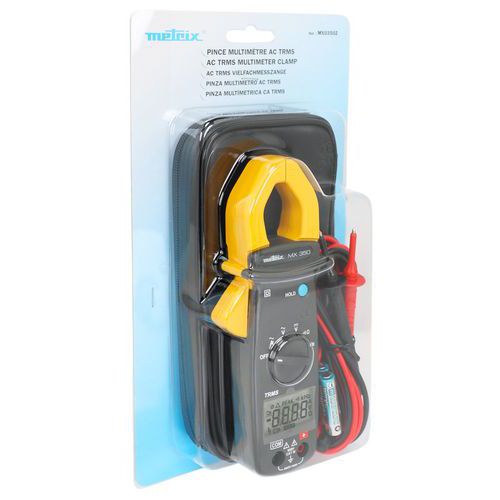

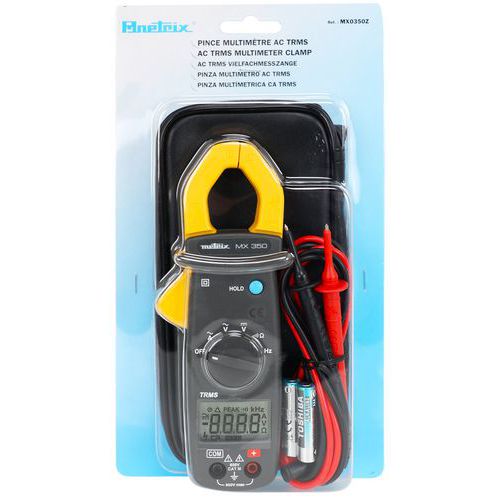

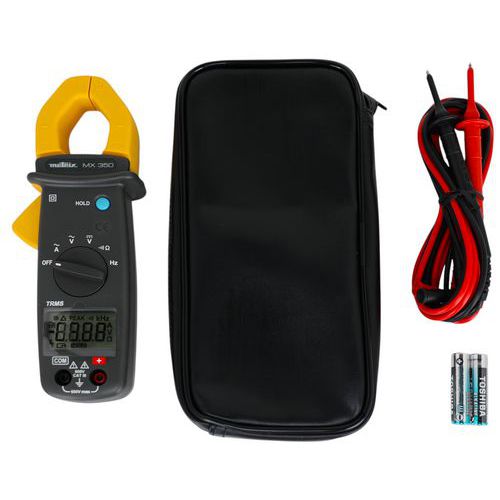

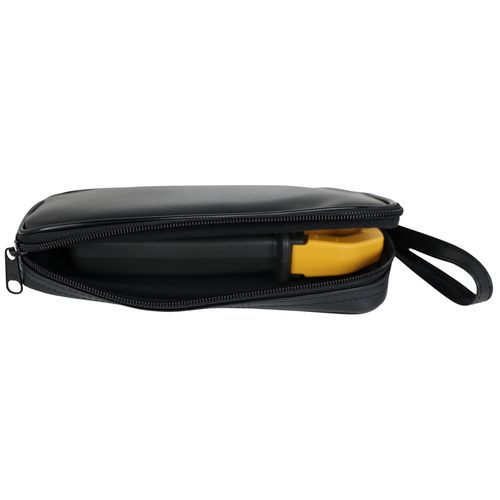

Clamp multimeter supplied with 2x 1.5-V AAA alkaline batteries, 1x set of operating instructions in 5 languages, 1x soft carry case, 1x set of test leads with test probes.
Customer warranty : 2 years
Environmental and/or social benefits
This packaging is 100% recyclable, which means that at the end of its life, all of its components can be recycled separately via specific recycling facilities.
Specifications
Product Information
Product Name
TRMS multimeter current clamp - Metrix
Brand
Metrix
Packaging
unit
Technical Specification
Display
6000-count LCD
AC Min. voltage (V)
0.05 V
AC Max. voltage (V)
600.0 V
Min. AC current (A)
0.05 A
DC Min. voltage (V)
0.03 V
DC Max. voltage (V)
600.0 V
Max. AC current (A)
400.0 A
Min. DC current (A)
0.10 A
Max. DC current (A)
400.0 A
Min. resistance (Ohm)
0.2 Ohm
Resistance Max. (Ohm)
599.9 Ohm
Min. frequency (Hz)
10 Hz
Max. frequency (kHz)
100 kHz
EN Norm
EN 61010, Cat. III 600 V, EN 61326-1, EN 61010-1 (IEC 66-5)
Certification
Check report
Customer warranty
2 years
Fully recyclable packaging
Yes - 100%
AC/DC Max. current (A)
400.0 A
Width (mm)
75 mm
Weight (g)
243 g
Thickness (mm)
36 mm
Length (mm)
199 mm
AC/DC Max. voltage (V)
600.0 V
AC/DC Min. current (A)
0.05 A
